JK Motion Drive

Drive Electronics

NORD produces the frequency inverters and motor starters for the necessary power electronics. Inverter solutions are available for traditional installation in the control cabinet as well as for decentralised and fully-integrated drive units — with a PLC integrated at no extra cost.

Product Range

Specifications as published in NORD flyer F1300.

Showing 1–5 of 5 products

NORDAC PRO SK 500E — NORD DRIVESYSTEMS
NORD DRIVESYSTEMSF3050

NORDAC PRO SK 500E

Control-cabinet frequency inverter

CabinetPOSICON
Sizes
11
Voltage
1~ 110 – 120 V · 1~ 200 – 240 V · 3~ 200 – 240 V · 3~ 380 – 480 V
Power
0.25 – 160 kW
  • Stand-alone operation
  • Energy-saving function
  • Integrated POSICON positioning control
  • Plug-in communication modules (field bus)
Enquire about NORDAC PRO SK 500E

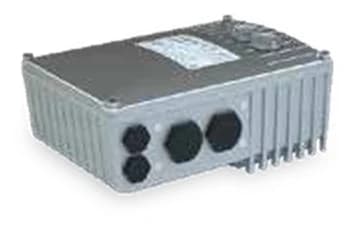

NORDAC LINK SK 250E — NORD DRIVESYSTEMS
NORD DRIVESYSTEMSF3025

NORDAC LINK SK 250E

Field distribution system

Field distributionPlug-in
Sizes
2
Voltage
3~ 380 – 500 V
Power — inverter
0.75 – 7.5 kW
Power — motor starter
0.12 – 3 kW
  • Frequency inverter or motor starter
  • All connections in plug-in version for easy commissioning and maintenance
  • PLC functionality for drive-integrated functions
Enquire about NORDAC LINK SK 250E

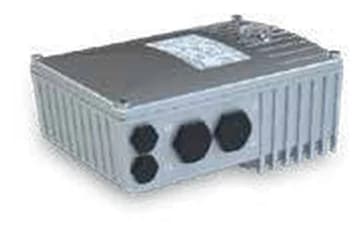

NORDAC FLEX SK 200E — NORD DRIVESYSTEMS
NORD DRIVESYSTEMSF3020

NORDAC FLEX SK 200E

Decentralised frequency inverter

DecentralisedPOSICON
Sizes
4
Voltage
1~ 110 – 120 V · 1~ 200 – 240 V · 3~ 200 – 240 V · 3~ 380 – 500 V
Power
0.25 – 22 kW
  • Energy-saving function
  • Integrated POSICON positioning control
  • Integrated PLC
Enquire about NORDAC FLEX SK 200E

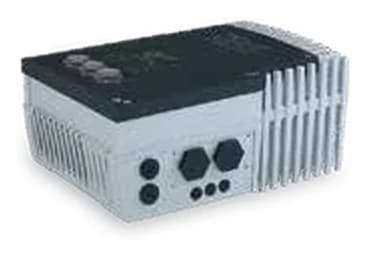

NORDAC BASE SK 180E — NORD DRIVESYSTEMS
NORD DRIVESYSTEMSF3018

NORDAC BASE SK 180E

Compact inverter · available with nsd tupH

CompactISD controlnsd tupH
Sizes
2
Voltage
1~ 110 – 120 V · 1~ 200 – 240 V · 3~ 200 – 240 V · 3~ 380 – 500 V
Power
0.25 – 2.2 kW
  • Stand-alone operation
  • 4 parameter sets
  • Sensorless current vector control (ISD control)
  • Integrated PLC
Enquire about NORDAC BASE SK 180E

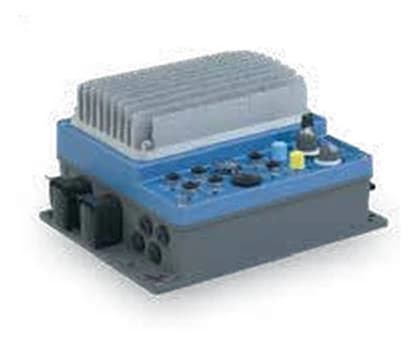

NORDAC START SK 135E — NORD DRIVESYSTEMS
NORD DRIVESYSTEMSF3015

NORDAC START SK 135E

Motor starter · available with nsd tupH

Motor starterSoft startnsd tupH
Sizes
2
Voltage
3~ 200 – 240 V · 3~ 380 – 500 V
Power
0.12 – 3 kW, or up to 7.5 kW
  • Integrated electronic brake rectifier
  • Consistent parameter structure
  • Reversing starter with soft start function
Enquire about NORDAC START SK 135E

Key Features

  • Scalable functions across the full power range
  • Full field bus connection facilities
  • PLC integrated at no extra cost
  • Cabinet, decentralised and fully-integrated mounting options

Typical Applications

IntralogisticsProcess linesHVACMaterial handling
